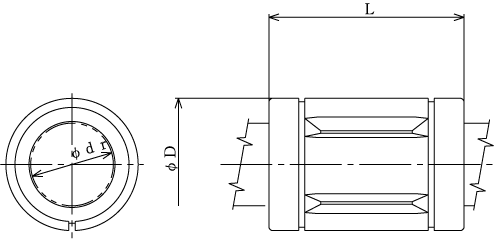

LM-MG-AJ Linear Bushing
Datasheet
| Model No. | Main dimensions | ||||||
| Inscribed bore diameter | Outer diameter | Length | |||||
| dr | Tolerance | D | Tolerance | L | Tolerance | ||
| Precision | High | Precision/High | |||||
| mm | mm | mm | mm | mm | mm | mm | |
| LM 6MG-AJ | 6 | 0 | 0 | 12 | 0 | 19 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8SMG-AJ | 8 | 0 | 0 | 15 | 0 | 17 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 8MG-AJ | 8 | 0 | 0 | 15 | 0 | 24 | 0 |
| –0.006 | –0.009 | –0.011 | –0.2 | ||||
| LM 10MG-AJ | 10 | 0 | 0 | 19 | 0 | 29 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 12MG-AJ | 12 | 0 | 0 | 21 | 0 | 30 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 13MG-AJ | 13 | 0 | 0 | 23 | 0 | 32 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 16MG-AJ | 16 | 0 | 0 | 28 | 0 | 37 | 0 |
| –0.006 | –0.009 | –0.013 | –0.2 | ||||
| LM 20MG-AJ | 20 | 0 | 0 | 32 | 0 | 42 | 0 |
| –0.007 | –0.010 | –0.016 | –0.2 | ||||
| LM 25MG-AJ | 25 | 0 | 0 | 40 | 0 | 59 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 30MG-AJ | 30 | 0 | 0 | 45 | 0 | 64 | 0 |
| –0.007 | –0.010 | –0.016 | –0.3 | ||||
| LM 35MG-AJ | 35 | 0 | 0 | 52 | 0 | 70 | 0 |
| –0.008 | –0.012 | –0.019 | –0.3 | ||||
| LM 40MG-AJ | 40 | 0 -0.008 | 0 -0.012 | 60 | 0 -0.019 | 80 | 0 -0.3 |
